E200 cannot detect the origin of the X-axis cloth feed motor. X-axis cloth feeding motor is abnormal or X-axis origin sensor has poor contact. Power off the PMD circuit board plug P10 and the main circuit board plug P20.
The emergency stop switch is damaged. Generally, it will prompt E015 E016 when it is started, and E025 E026 when the foot switch is damaged. The error code below 100 is usually the system switch fault.
E130 failure indicates that the spindle does not rotate, excluding the mechanical part stuck, which is generally the damage of the power motor base plate, and a small part is the damage of the spindle motor.

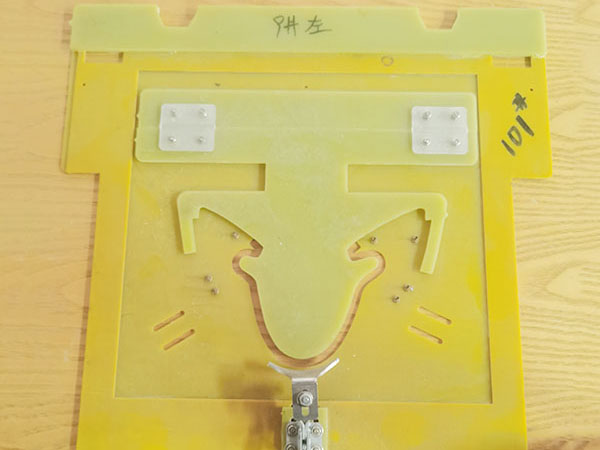

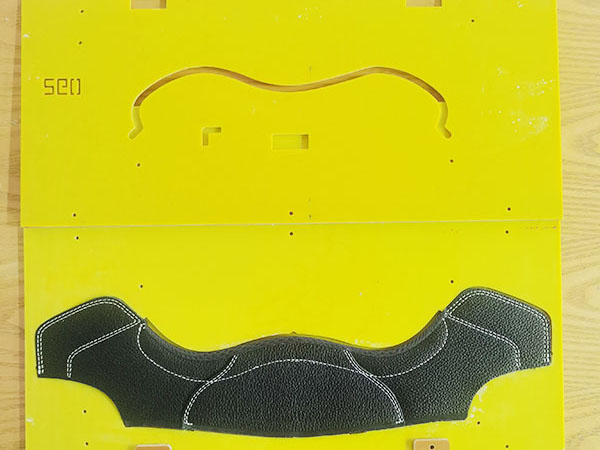

Pattern shift is a common and difficult to deal with prototype problem, involving a wide range of causes, the main inductor and inductor piece position distance debugging, feeding part of the screw loose, synchronization belt damage, stepper motor and stepper motor drive plate damage, press plate and template with the pin plate press foot interference.
E010 press the pause switch, and press the RESET button on the operation panel to cancel; E011 Press the pause switch. Please press the RESET key to remove the fault. Press the button to move the cloth to seam.
If E110 is not in the upper stop position, please turn the handwheel until the error display disappears; E111 does not stop at the upper stop position after tangent, please turn the handwheel until the error display disappears
